VG 95218 Navy Cables
LFMSGSSGO Light weight Ships Telecommunications Cables acc. to VG 95218 part 66

Application

These cables are designed for fixed installation in electrial power and control systems below and above deck, preferably on ships of the German Navy and/or German design of construction. Not intended for permanent installation in or under water. Fulfill all requirements of BV3400 (Specification for Construction of German Navy vessels).

Standards

VG 95218-66
VG 95218-2
IEC 60228
VDE 0207-22

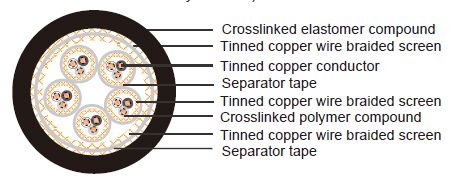

Construction

Conductor: Tinned copper conductor, stranded class 2
Insulation: Crosslinked polymer compound
Triple Screen：Tinned copper wire braided screen, separator tape
Overall Screen: Tinned copper wire braided screen, separator tape, two screens electricaly separated
Sheath: crosslinked elastomer compound, black

Core Identification

The cores are to be marked by coloring the insulation or its surface. The triples shall have colored separators C or colored stripes
Core in each triple: Black, White, Grey
Triple marking:
In each layer:
1 Triple: Red
2 Triple: Green
3 Triple: Nature
※ Pilot and direction shall be the same in all layers

Electrical and mechanical characteristics

Nominal Voltage:250V
Max. operating voltage: AC 250 V DC 355 V
Operating temperature at conductor: + 85 °C

Dimensions and Weight

LFMSGSSGO Type A

Nomenclature acc. VG 95218  Part 66 Type/Part No.	Number of cores and  nominal cross section  mm²	Nominal Diameter of conductor  mm	Nominal insulation  thickness  mm	Nominal sheath  thickness  mm	Outer diameters  min. /max.  mm		Cable Weight  kg/km
A001	5x3x0.4	0.85	0.2	1.0	12.2	13.9	328
A002	12x3x0.4	0.85	0.2	1.2	16.9	18.9	613
